BirdDog 4K HDMI 2.0 NDI Encoder/Decoder

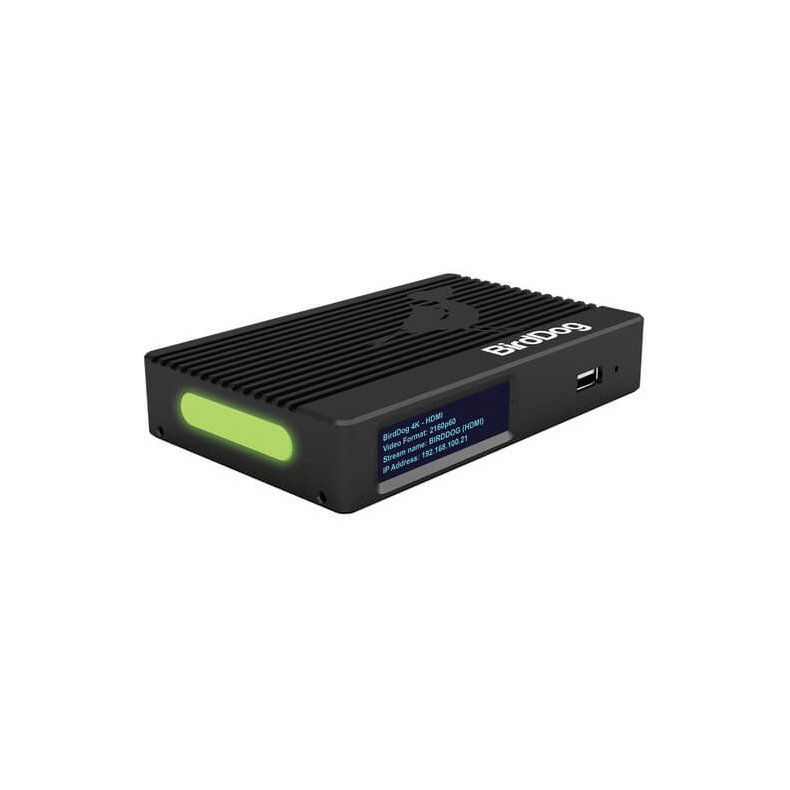

Based on BirdDog's custom NDI silicon chip, the BirdDog 4K HDMI 2.0 NDI Encoder/Decoder supports up to UHD 4K/60 video input for distribution on NDI networks in full-bandwidth I-frame compression. The compact device is housed in an aircraft-grade aluminium case and features an HDMI 2.0 input and HDMI 2.0 and 12G-SDI individual outputs. It also has a built-in cross converter that allows the HDMI input to be looped out via the 12G-SDI output.

Another major feature is an SFP+ expansion slot that supports SFP+ modules for fiber connectivity and Ethernet protocols from 1-10GbE. A tally system with a large bicolor tally light is built-in for indicating which camera is live to on-air talent. The tally system allows user-selectable tally borders on loop out. The device is complete with 3.5mm audio input/output, a 4-line OLED display, and USB 3.0 interface. It can be powered by a standard power supply or over PoE+.

The 4K HDMI 2.0 NDI Encoder/Decoder comes with the BirdDog Comms Lite audio intercom software, which supports up to four BirdDog devices. Comms Lite is Windows compatible and offers features such as director push to talk, mute camera operator, auto-detect NDI sources, monitor camera audio, and shortcut to web console. For a more complete version of the application, an optional upgrade is available to Comms Pro. The Encoder/Decoder is also compatible with the optional BirdDog Central software, which helps you decode NDI back to HDMI or SDI.

Key Features

• Up to UHD 4K/60 Input
• Full-Bandwidth I-Frame Compression
• HDMI 2.0 Input, HDMI 2.0/12G-SDI Output
• 3.5mm Audio Input/Output
• Built-In Cross Converter
• SFP+ Expansion Slot
• Tally Light; Select Tally on Loop Out
• PoE+ Support
• Comms Lite Intercom Software (Windows)
• PTZ Control via Optional USB Dongle

Specifications:

SUPPORTED VIDEO FORMAT
UHD 3840x2160  23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
HD 1920x1080p  23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
HD 1920x1080i  50.00i, 59.94i
HD 1280x720p  50.00p, 59.94p, 60.00p

VIDEO I/O CONNECTIVITY
HDMI 2.0 Input Yes (1x)
HDMI 2.0 Output Yes (1x)
12G SDI Output  Yes (1x)

AUDIO INPUT
HDMI  2Ch, 48kHz
3.5mm AUDIO  Microphone/line input

AUDIO OUTPUT
HDMI  2Ch, 48kHz
SDI 2Ch, 48kHz
3.5mm AUDIO Stereo Headphone/line output

VIDEO PROCESSING
Downconvert NDI output 4K -> 1080p, 1080p -> 720p
VIDEO CODEC SUPPORT Yes

DISPLAY
Integrated 4-line OLED Status Display  Yes

TALLY
Onboard Bi-color Tally indicator  Yes
Selectable Tally indicator on video loop outputs  Yes

NETWORK CONNECTIVITY
Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet)  Yes
Open SFP+ Cage (10gb SFP+ Adapters sold separately)  Yes
Embedded Web configuration Panel  Yes

WEIGHTS & DIMENSIONS
Size  135x85x25mm
Weight 260g

POWER
DC Input DC 12v / 16w
PoE (Power over Ethernet) PoE+ 802.3at
EXTERNAL INTERFACE SUPPORT (Requires Optional Cables)  USB to RJ45 for additional network in device support, USB to RJ45 for VISCA over IP PTZ control, USB to Serial PTZ control (RS232), USB ISO recording
