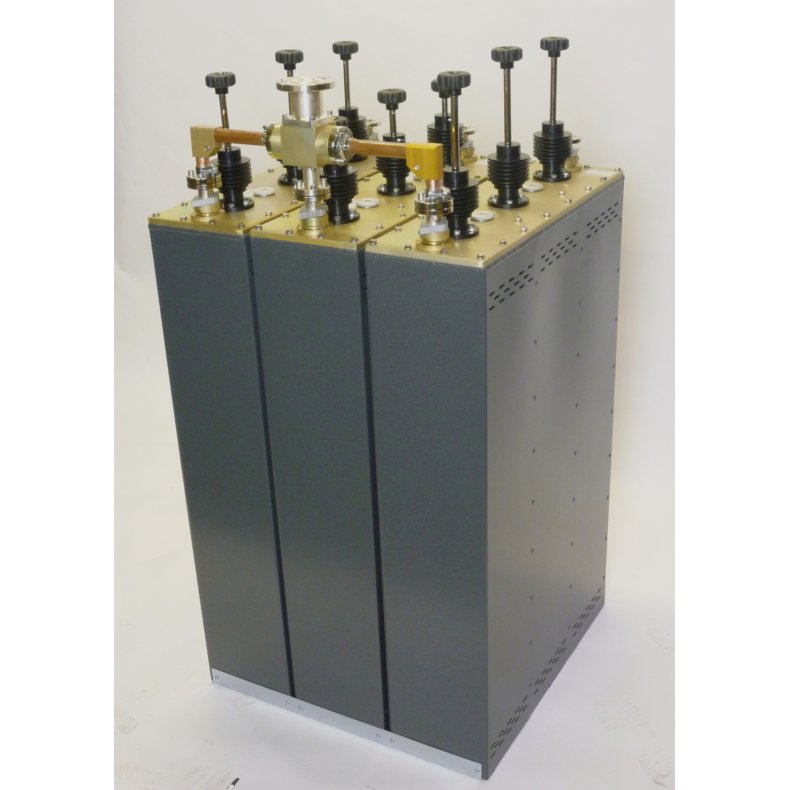

EuroCaster FTT/7500S FM Triplexer Starpoint Triple Coaxial Filters 3 x 2,5 kW Aluminium

EuroCaster FTT/7500S FM Triplexer Starpoint Triple Coaxial Filters 3 x 2,5 kW Aluminium

5.685,00 EUR

Modell/Artikelnr.: LI-FTT/75000S
Lagerstatus: Lieferzeit mindestens 21 Tage/+
Stück

EuroCaster FTT/7500S

Made of aluminum, silvered copper and PTFE. They are composed of two or more cavity filters connected together by rigid lines, so we will have all inputs selective. It is therefore necessary , in order, knowing all the frequencies of use.



Freq. Range: 87.5 – 108Mhz

Impedance: 50 Ohm

V.S.W.R.: < 1.15:1

Attenuation: < 0.5db

Isolation between Channels: 35db typical

Working temperature: 10-40°

Connector In: 7/8

Connector Out: 1+5/8

Power: 3x2.5 kW

Weight: 81 kg

Dimensions: 130x62x60 cm

Material: Aluminium, silvered copper, PTFE
