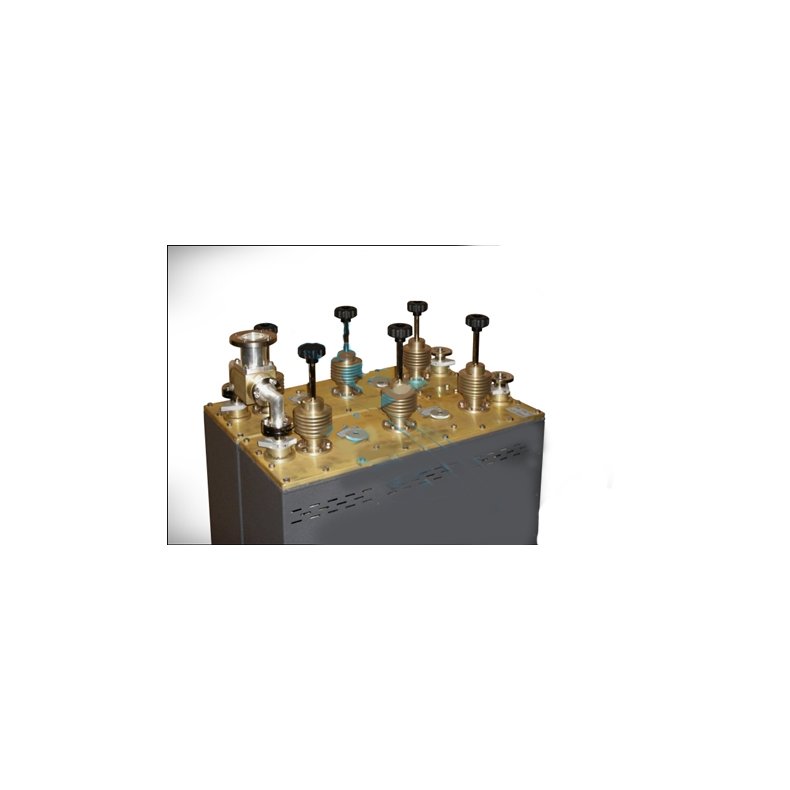

EuroCaster FDT/10000S

Made of aluminum, silvered copper and PTFE. They are composed of two or more cavity filters connected together by rigid lines, so we will have all inputs selective. It is therefore necessary , in order, knowing all the frequencies of use.



Freq. Range: 87.5 – 108Mhz

Impedance: 50 Ohm

V.S.W.R.: < 1.15:1

Attenuation: < 0.5db

Isolation between Channels: 35db typical

Working Temperature: 10-40°

Connector In: 7/8

Connector Out: 1+5/8

Power: 2x5 kW

Weight: 90 kg

Dimensions: 130x73x70 cm

Material: Aluminium, silvered copper, PTFE
