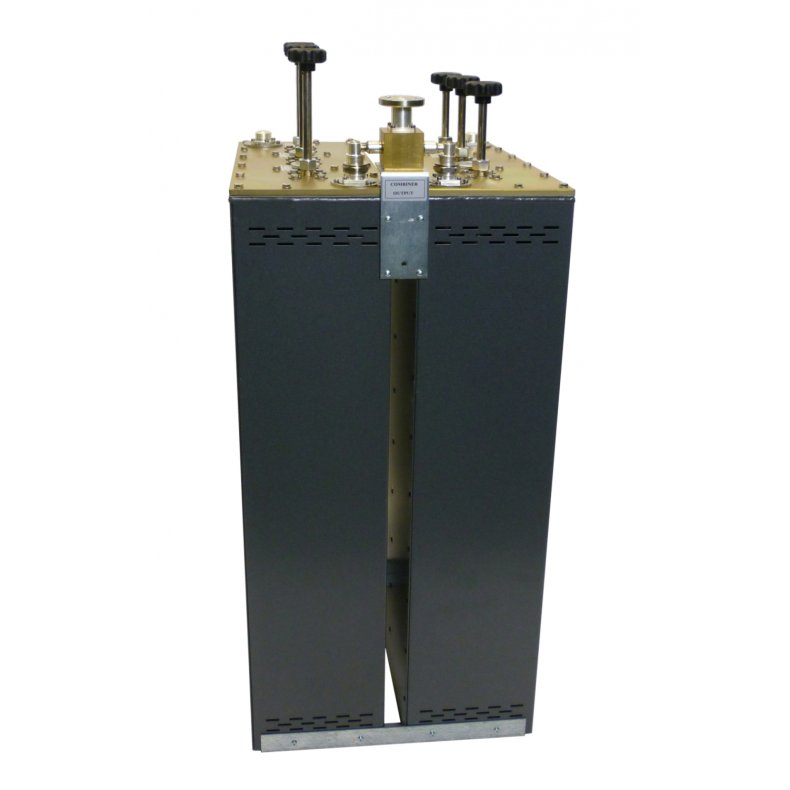

EuroCaster FDT/2000S-H FM Duplexer Starpoint Triple Coaxial Filters 2x1,2kW Aluminium

EuroCaster FDT/2000S-H FM Duplexer Starpoint Triple Coaxial Filters 2x1,2kW Aluminium

2.798,00 EUR

Modell/Artikelnr.: LI-FDT/2000S-H
Lagerstatus: Versand innerhalb 10-21 Werktagen
Stück

EuroCaster FDT/2000-SH

Made of aluminum, silvered copper and PTFE. They are composed of two or more cavity filters connected together by rigid lines, so we will have all inputs selective. It is therefore necessary , in order, knowing all the frequencies of use.



Freq. Range: 87.5 – 108Mhz

Impedance: 50 Ohm

V.S.W.R.: < 1.15:1

Attenuation: < 0.6db

Isolation between Channels: 35db typical

Working Temperature: 10-40°

Connector In: 7/16

Connector Out: 7/8

Power: 2x1.2 kW

Weight: 34 kg

Dimensions: 130x41x40 cm

Material: Aluminium, silvered copper, PTFE
