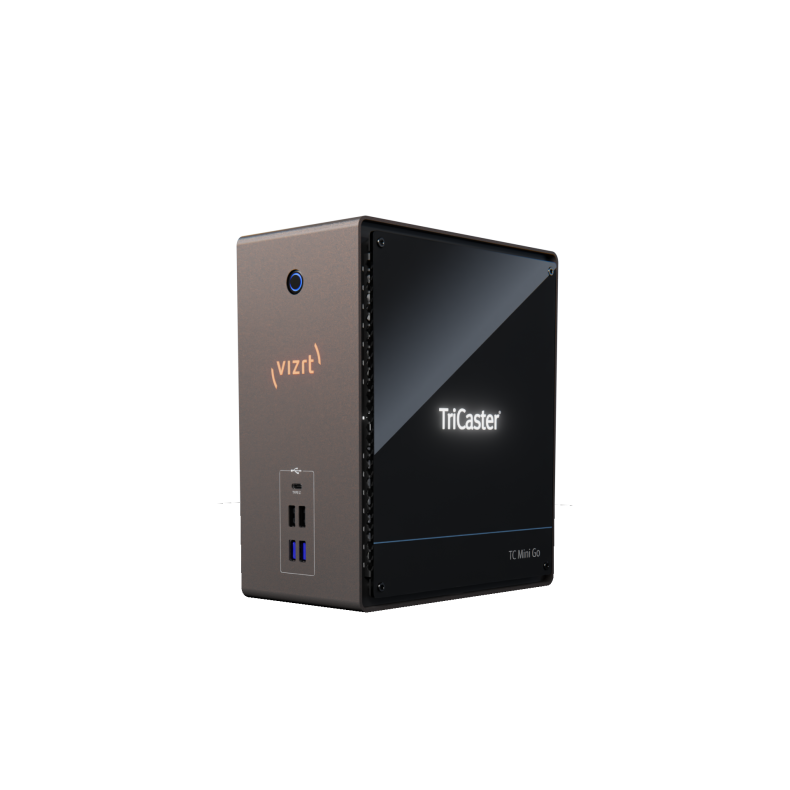

TriCaster Mini Go: The go-to for anyone with a story to tell.
There has never been an easier way to start your journey with a TriCaster. TriCaster Mini Go
offers creators anywhere the simplest set-up yet with a wealth of professional level video
production features that grow with you as you continue along your TriCaster live production
journey.
Built with NDI at its core, the Mini Go is an easy to use, yet scalable solution that can be
simplified or expanded, as necessary; from using USB devices to simple converters. Once part
of the Vizrt ecosystem of products, users can take advantage of the many ways to scale-up
their productions to suit any need.
- Our entry-level TriCaster and
great first step on TriCaster - Perfect for podcasters,
influencers, or streamers. - Offers USB or NDI® Connectivity.
- Advanced graphics capabilities
using Live Link. - Support for great quality 1080/60p video
- Offers 4 inputs, 2 MEs, 2 Layers
and 2 Keyers - Compatible with all major
streaming platforms. - Real time social media publishing
| Video Input | Up to 4 utilizing IP connections via SRT, NDI, RTMP, RTSP, WebRTC and Microsoft DirectShow compliant devices via USB |
| Audio Input | Embedded audio supported for IP protocols Supplemental support for Dante™ networking protocol from Audinate® 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) Support for professional USB audio devices via compatible WDM audio drivers |
| USB Connectivity | 2 x USB 3.2 Type-C ports 6 x USB 3.2 Type-A ports 3 x USB 2.0 ports |
| Network Video Output | IP video output via NDI – 2 x independent video mix outputs |
| Stream Output | 2 x streaming video output, independently configurable, with simultaneous stream archive |
| Monitor Outputs | 2 x mini display port with output adapters Max monitor resolution 1080p/60 |
| Max Session Output Resolution | 1080p/60 |
| Mix/Effect Buses (M/E) | 2 x M/E buses 2 x Keyers per bus 2 x Layers |
| DSK Channels | 2 x DSK channels |
| Media | • 5 x Media Players (2 x DDR, 2 x GFX, 1 x Sound) • 15 x Media Buffers (10 x Live Link or Animation Buffers, 5 x Graphics Buffers) |
| Keyers | Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses • 8 x input keyers • 2 x media player keyers • 2 x M/E keyers • 15 x buffer keyers |
| Audio Mixing | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
| Virtual Sets | Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros | Pre-defined system Macros – Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers – Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions – Supports control via web-based interface |
| Recording | 2 x recording channels from either NDI® inputs or Mix outputs – Records and retains alpha channel data |
| Storage | Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 Support for Network Attached Storage(NAS) |
| Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| PTZ | Support for up to 4 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232*, RS422*, and IP, with integrated controls and preset system *Requires USB to serial adapter – sold separately |
| Processing | Video: YCbCr + Alpha color space, using 4:2:2:4 Audio: 96 kHz |
| Supported Media File Formats | Import, store, and play back multimedia files, with optional transcoding, including: • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more • Audio: AIFF, MP3, WAV, and more |
| Processing | Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
| Latency | Processing Latency: ~1.0-1.5 frames |
| Tally | Support for network tally via NDI® |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| NIC | • 2 x 2.5 Gigabit NIC |
| System Physical | TriCaster Mini Go system chassis, including adjustable handle and cable retention bracket – 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm) – 8.4 lbs (3.8 kg) |
