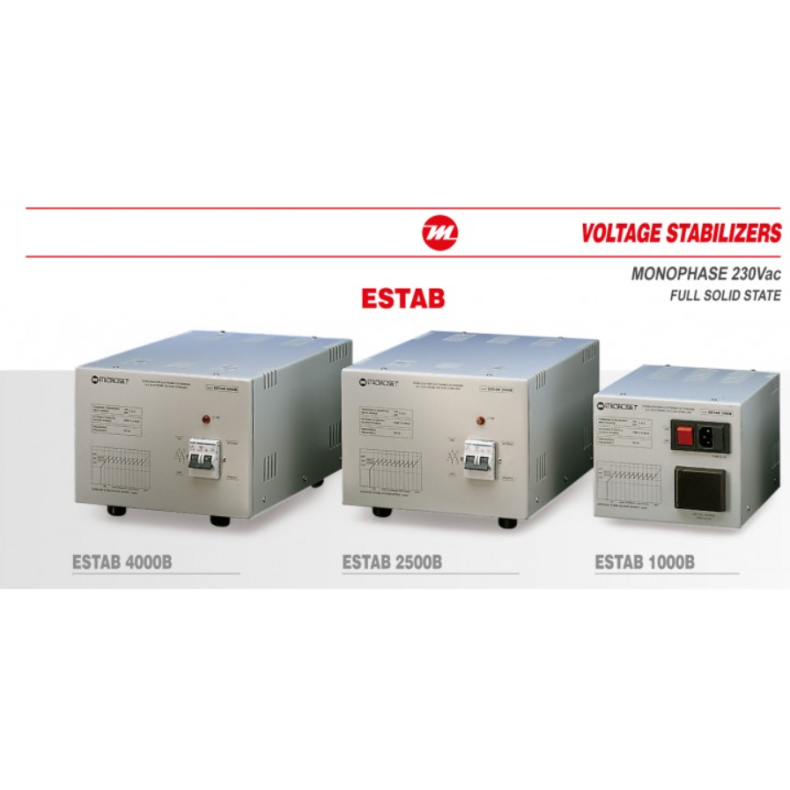

Microset ESTAB 1000B
Electronic Automatic voltage Stabilizer: Monophase 230Vac.
Input voltage 170-270Vac, speed control 1ms per volt.
Use: photocopy machines, faxes, computers, petrol pumps, refrigerators, etc.
* Available only on request.
The most advanced and reliable A.C. Voltage stabilizer on the market.
Excellent voltage stabilizers family able to use on very unstable main voltage condition, countryside zone and industrial parks.
Full solid state, high-speed control, wide input range regulations, excellent output voltage stability, low distortion, very long operating, maintenance free.
Typical applications: photocopy machines, laser printers, computers, plotters, automations, distributors and automatic cash, petrol-pumps. Hi-Fi, houses, air conditioners, refrigerators, etc.
- Full automatic solid state
- Maintenance free
SPECIFICATIONS:
Model ESTAB 1000B
Power 1000VA
Input range 170-270V(-27 +23%)
Speed Control 1 milisec. per volt
Load availability 0-100%
Harmonic distortion 2%
Efficiency 96-98%
Operating temp. -5 + 40° C
Power factor 0.8
AC Output voltage 230VAC ±2,5%
Dimensions 230 x 315 x 185 mm
Weight 9,5 Kg
please read the brochure
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| ESTAB-voltage-stab.pdf | 207.53KB | Herunterladen |
