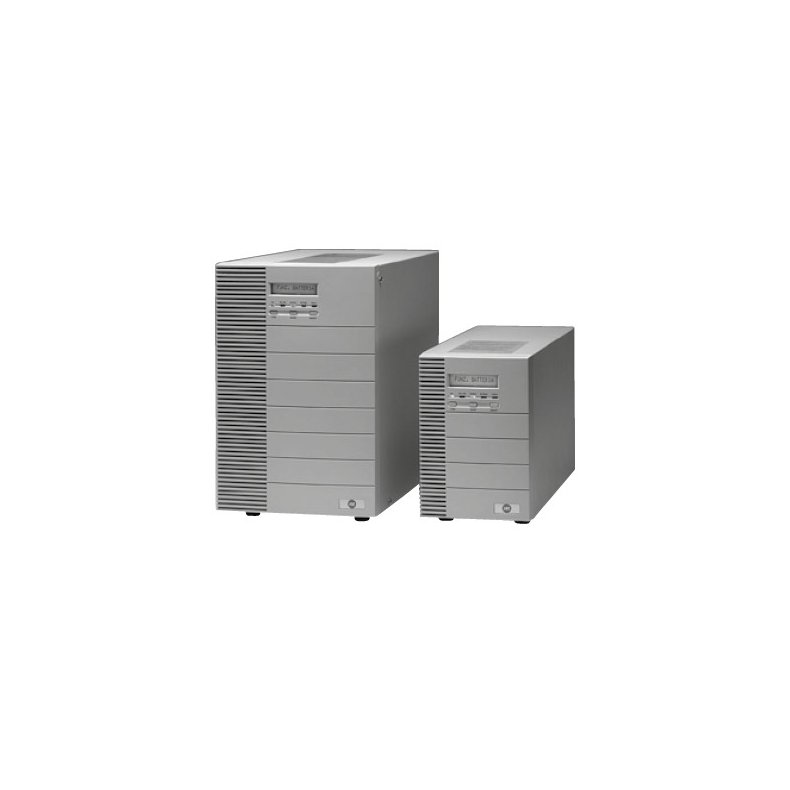

Microset PMT 20
NO BREAK - PURE SINE WAVEFORM
Modern and reliable U.P.S. on-line double conversion
Always operating with or without main, no break system.
Very efficient also on critical application, as voltage instability and short or long black-out. Great perfomance and operativity.
Useful to supply computers, work stations, switchers, telephone networks.
Features:
- Digital display for easy programming
- Software for the most popular operative standards
- Innovative energy saver operative modes
- Protection filter for modem/LAN/fax
- SNMP facility
- Expandable autonomy
- Power factor control
- Stabilizer active
- EPO emergency turn-off
- LAN filter - USB - RS232 interface
- In 230Vac ± 15% Out 230Vac ± 2% mono
Batteries 4-5 years life typ. professional type, external additional battery pack.
Power: 2kVA - 1.4kW
Autonomy: 6-12 min.
Battery Size: 6 x 12V 7Ah
Size WxDxH (mm): 225 x x 425 x 360
Weight: 34 kg
Load: 4-5
Common specifications:
OUTPUT
- Voltage: 220-230V ± 2% 50Hz
- Power factor: 0.95 - 0.97 (PFC)
- Waveform: pure sine, THD 3%
- Overload: up to 125% 1 min., up to 150% 10 sec.
- Interface: RS232 e USB standard / SNMP optional
- Input voltage: 230V ± 15% (limit 184 - 276V) monophase
- "High efficiency" 86% mode selectable
- "Green mode" (automatic shut-down in load absence) selectable
- E.P.O. switch (emergency Power Off)
- Shut-down and reboot software manager
