Feelworld LUT11H 10.1 Inch Ultra Bright 2000nit Monitor Touch Scr 4K, HDMI in(x2) 1920x1200

Feelworld LUT11H 10.1 Inch Ultra Bright 2000nit Monitor Touch Scr 4K, HDMI in(x2) 1920x1200

351,50 EUR 370,00 EUR

Modell/Artikelnr.: FW-LUT11H
Lagerstatus: 1 Stück auf lager
Stück

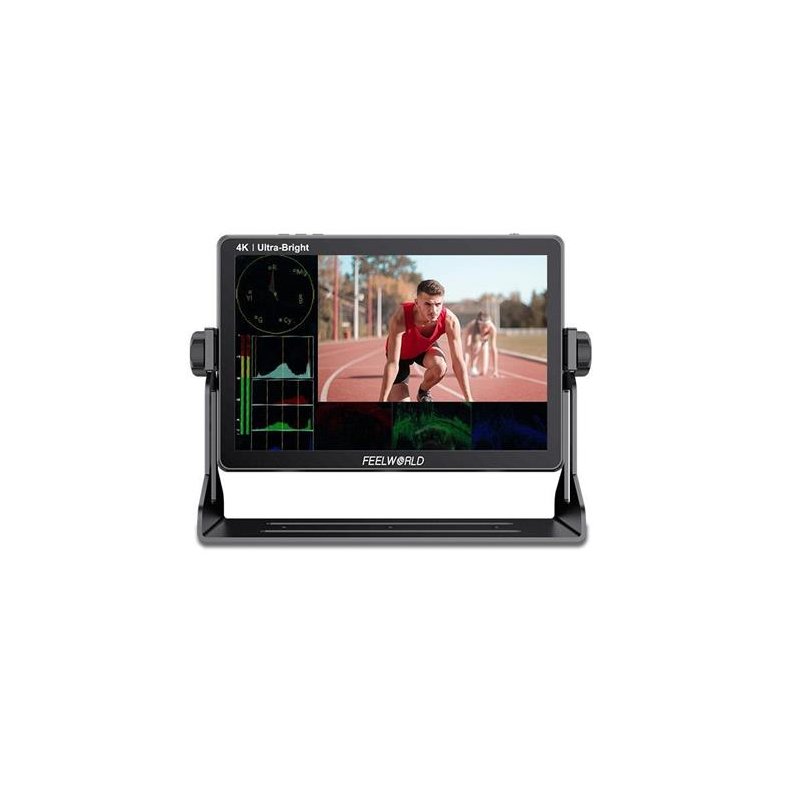

FEELWORLD LUT11H 10.1 Inch Ultra Bright 2000nit DSLR Camera Field Monitor Touch Screen 4K HDMI F970 External Power

Introduction

Screen Size:  10.1" IPS
Resolution:   1920x1200 pixels
Aspect ratio: 16:10
Brightness:   2000cd/m²

Input: 2*HDMI 1*Tally

Output: 1*HDMI, DC OUT 8V, Stereo Headphone

* 10.1-inch 1920x1200 full HD IPS screen
* Touch screen menu operation, improve shooting efficiency
* Ultra-bright 2000nit, clearly visible in the sun
* Light sensor auto dimming
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
* Supports HDR monitoring, what you see is what you get
* Dual HDMI inputs support up to 4K@60Hz
* Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Built-in Tally Indicators (Red, Green, Yellow)
* Stereo Earphone output
* DC 8V power out to power your DSLR camera or mirrorless camera

Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.

RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.

Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between Yellow, Magenta, Cyan, Red, Green, Blue, White according to different tone of the subject. The focus level can be adjusted from 1 to 8 levels.

False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Exposure (Zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. There is a 1%-100% zebra value that can be adjusted.

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or gray pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Zoom In (1.0x~5.0x%)
Image magnification is HD signal in any part, an amplification for high quality close-up. The touch panel can help you zoom in quickly, zoom out and move the image after zooming in.

Anamorphic Mode
Built-in selection of no squeeze, 1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag allows you to use anamorphic lenses or adapters and see the image unsqueezed.

Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.

Nine Grid
Nin grid is the most common and basic composition method. The area of the picture can be choose divided into 9,16, 15,25,24,36 equal grids.

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

Center Marker & Safety Marker
Safety Marker for View Finding and Composition (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16: 1.85:1, 2.35:1). You can switch the Mark color between Yellow, Magenta, Cyan, Red, Green, Blue, White according to different tone of the subject.

Ratio Marker
There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.9:1, 5:4, 1:1.9); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.
