DEVA DAB-ANT-M - DAB Mobile Antenna with Magnet base, BNC Connector

DEVA DAB-ANT-M - DAB Mobile Antenna with Magnet base, BNC Connector

75,00 EUR

Modell/Artikelnr.: DV-DAB-ANT-M
Lagerstatus: Lagernd! Versand innerhalb 1-3 Werktagen
Stück

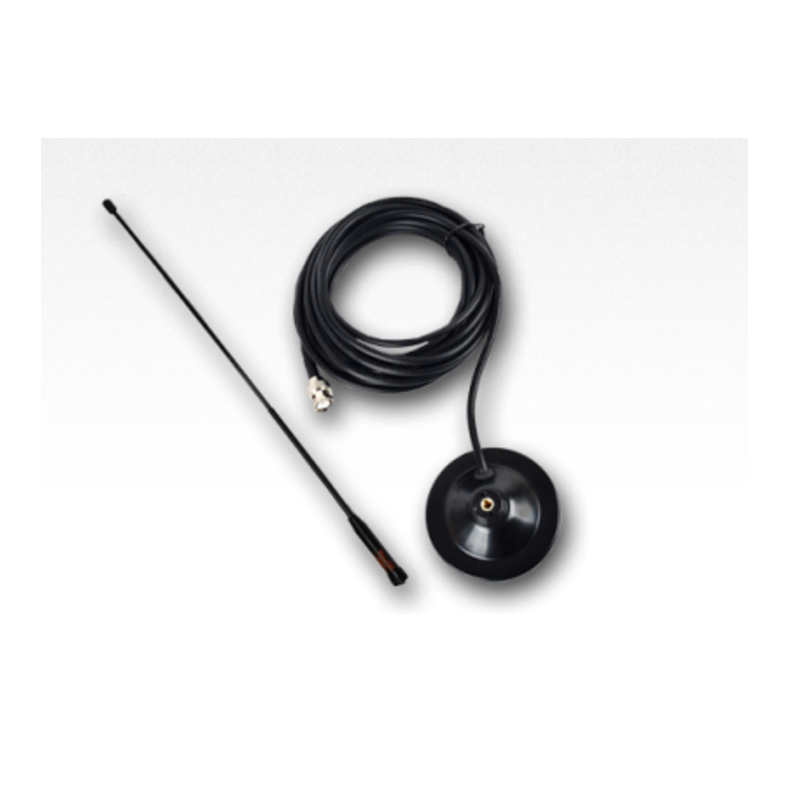

DEVA DAB Mobile Antenna with Magnet base, BNC Connector

Next to the DAB/DAB+ Radio mobile analyzer, the antenna is the most important element for a good results and precise measurements. An efficient antenna like this, makes the difference between 'works' and 'does not work'. The DAB-ANT-M Mobile Antenna comes with a 4.5m RG58 coaxial cable with BNC connector and strong magnet base with a rubber boot on the magnet for scratch resistance. Due to all the antenna measurements and analysis, this antenna can be used for a precise measurements or coverage surveys with all of our DAB Radio Analyzers and Receivers. All antenna measurements, antenna factor and antenna profile files are available in the Downloads section.

Specifications:

ANTENNA ELECTRICAL
Frequency Range 168-240 MHz
SWR < 1:5
Gain 1.2 dBd (3.28 dBi)
Impedance 50 Ω
Max Power 100 W
Polarization vetical
ANTENNA MECHANICAL
Connector BNC
Cable type 4.5 m, RG 58/U
Length 315 mm
Weight 20 g
Mounting Magnetic/Roof mount
Material Radiator: stainless steel
MOUNTING BASE
Application Mobile magnetic mount for VHF antennas
Diameter 90 mm
Height 80 mm
Weight 610 g
