Axel Tech XPlayout

Axel XPlayout Softwarelizenz - TV-Playout-Software für mehrere Formate (DV, HDV, MPEG-1,2,4, MPG, VOB, WMV, QuickTime, H.264, etc.) - Beinhaltet XPlayout, XTrimmer, XScheduler, XRouter, XRemote, XEmergency - Logoerstellung, Steuerung von Umschaltern, GPIs und seriellen Geräten.

Axel Xplayout ist eine moderne IP-basierte - beliebige Dateiformate - Automation, ermöglicht aber auch die traditionelle Fernsteuerung externer Geräte wie Cart-Maschinen, Videorecorder, Logo-Generatoren und insbesondere GPIs und Master-Steuerungen, Videomischer und Routing-Switcher, wie Blackmagic Atem, Videohub, Newtek Tricaster oder jedes Gerät mit RS232/422-Steuerung. Live-Events können direkt in die Playlist eingefügt werden und TCPIP- oder serielle Befehle werden automatisch an die externen Geräte gesendet. Alternativ können Live-Quellen im "AV-Bypass-Modus" gelüftet werden, indem sie an die Eingänge der Capture-Karte des Systems angeschlossen werden. In diesem Fall kann eine Verzögerung von 3 Sekunden bis zu mehreren Tagen angewendet werden, um einen Zeitverschiebungsmodus zu erreichen, sehr praktisch bei der Verwaltung von Zeitzonenunterschieden in Ländern.

Specifications:

• Supported Video Cards: Blackmagic Design DeckLink and Intensity, AJA Corvid, Bluefish
• Resolutions: SD, HD, 2K, 4K (depending on AV card)
• Simultaneous NDI output
• Simultaneous WebRTC output
• Preview output on SDI
• Up to 16 Audio channels
• Up to 16 Audio channels
• Timecode rp188
• Virtual device emulation for use as cpature device in 3rd party sw
• Split CG layer on separate SDI or NDI in Key and Fill
• Sdi or NDI inputs for LIVE sources in AV bypass

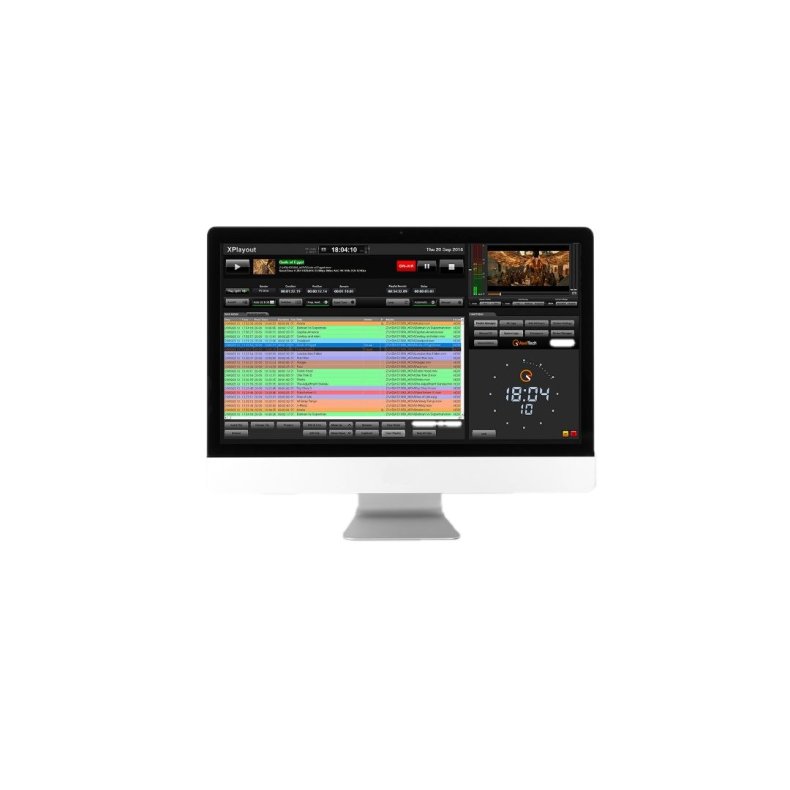

GUI

• Full screen GUI optimized for 1920x1080 monitor
• Channel Alias
• Preview framerate adjust for RDP optimization
• CC preview
• Drag and Drop of multiple files
• Single clip position duration and position display
• Total playlist duration and remain display
• First frame positioning
• Dual graphical or grid style playlist GUI
• Drag and Drop to GUI
• OSD vu-meters and waveform
• Realtime video preview
• GUI lock with password
• Customer Logo on main screen
• Colors according to file gender or status

Features

• Virtually any video and file format compatibility
• Automatic upscale, downscale, framerate adaptation and aspect ratio correction
• CG overlay
• Key output on SDI with 32 bits Quicktime Anim, Quicktime ProRes 4:4:4:4, bitmap sequence
• As run logs
• Log files
• VGA compatibility mode for old VGA cards
• Separate audio track file management
• Remote control of Blackmagic Design ATEM and NewTek TriCaster
• MarkIn and MarkOut management (triggering)
• Frame accurate loops REC while PLAY (for specific formats) with endless MarkOut
• Realtime Vertical and Horizontal Crop
• Realtime field swap: top bottom progressive
• Realtime aspect ratio correction mode: Letterbox, no letterbox, stretch
• Detailed info on playlist, preview and output status
• AGC – Automatic Gain Control
• Automatic switch on backup path in case of main path failure
• Automatic play from preferred path if same media copy is available
• Status file and thumbnail update of main output
• Autofill from folder when ahead of time or end of playlist
• Automatic load of playlist according to file syntax

• Emergency file with hotkeys, also with numeric keyboard
• Automatic load of last playlist at start-up
• Routing switcher remote control : Blackmagic Design ATEM and Videohub, NewTek TriCaster, any RS232 or RS422 routing switcher or master control
• VCR automation UVW, VP9xxx or and RS422 SONY
• Cart machine control: PROMATIC, DIGICART
• Fast CG for emergencies: clock, text and crawl
• Automatic CG according to file gender or user custom types
• Remote control of external CG
• Integrated master and slave workflow
• From 5 seconds to 1 day delay for SDI/NDI sources as time shifting
• Subtitle rendering for SRT files
• Advanced CG with clocks, tickers, rolls, crawls, bitmap animations, any video file format
• 2D Squeezeback with advanced backround graphics layer
• All CG graphics as secondary events
• GPI in/out
• Automatic skip/cut if schedule is late
• Exact time management in cut/wait for end of current event
• CG composing tool for template creation
• Non-intrusive sub clip creation for advertisement insertion
• Crossfade/effects between files
• Traffic scheduling tool
• Quality control tool with SDI/NDI output, metedata insertion and loudness control
• Automatic media copy tool from NAS to local hard disk (optional)
• Automatic music playlist creator (optional)
