D&R Airlab Option - Triple Digital input module

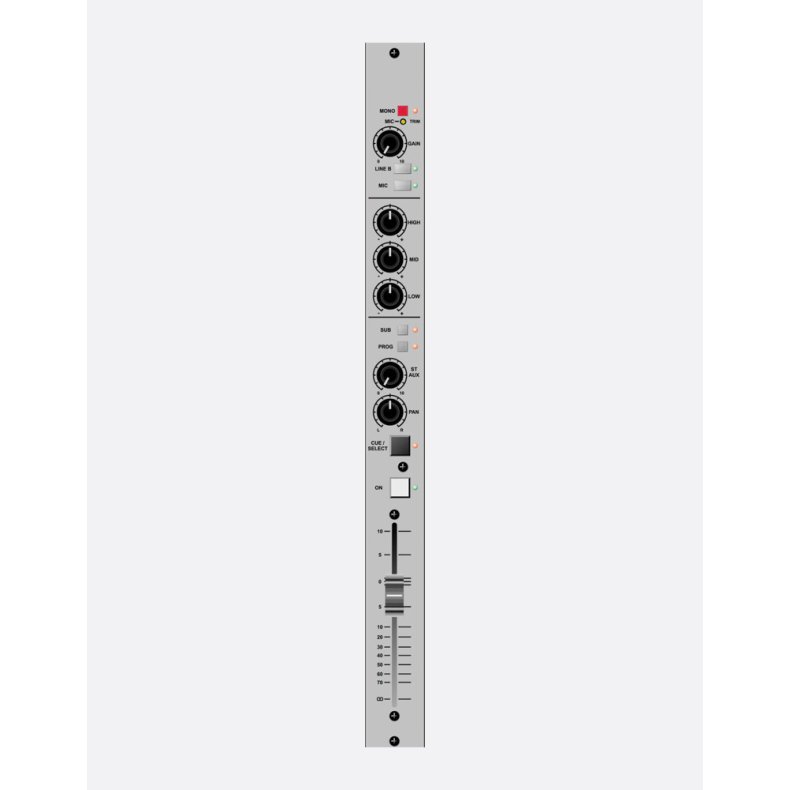

Airlab Triple Input Digital Module
The microphone input is electronically balanced, via a 3-pin female XLR, with selectable 48V phantom power. A single female XLR provides a balanced AES stereo input, compatible with sample rates of 32kHz to 96kHz. A male XLR provides an AES output of the main or sub output. The second digital line input is SPDIF via single RCA (phono) socket; a digital SPDIF output is via another RCA (phono) socket. Red light or studio remote connections use a 6.35mm jack socket. Fader start and a microphone 'insert' are via separate 6.35mm jack sockets. This module also includes the same EQ section as the Airlab Triple Input EQ Module.
