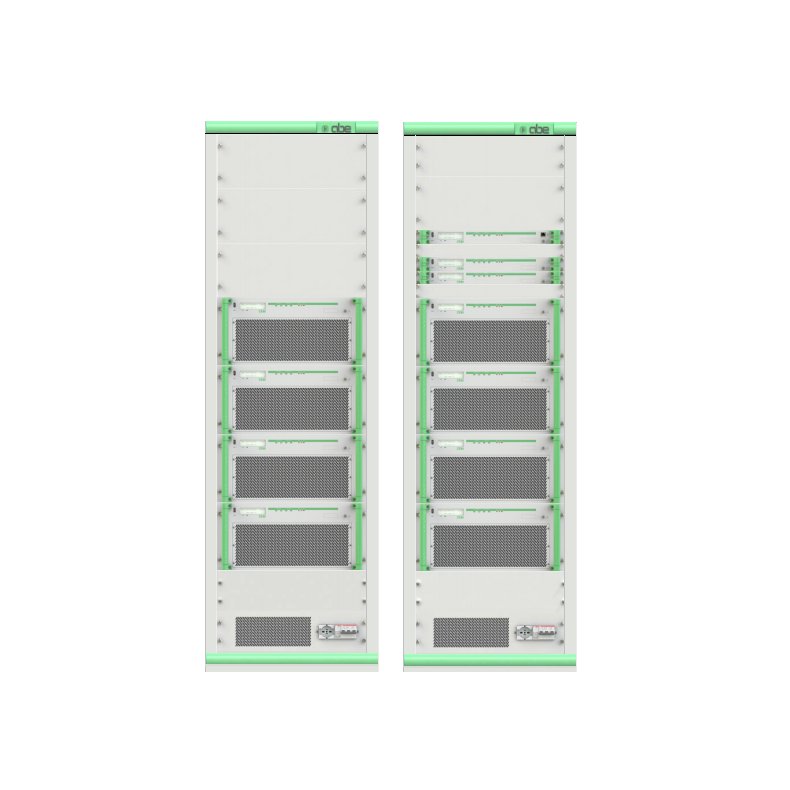

ABE MTX D10K/U DVB-T2 UHF TV Transmitter 10kW

MTX D1K5/U_SA is a 2 x 42 unit cabinet, contains driver and 16 Amplifier

The MTX-D-T2"" is a digital DVB-T2 terrestrial TV broadcasting
transmitter series.
Featuring modulator construction - with easily removable modules
having RF internal isolation - the MTX series exploits the advantages
of state of the art technological solutions to achieve high
reliability and comprehensive system flexibility - all at reduced size.
Maintenance as well as channel changing operations are simple
and easy to perform.
Careful product design brings high versatility, enhanced by the
provision of specific options and giving compliance with major
world digital and analog terrestrial TV broadcasting standards.
Equipment employ high performance, highly efficient power amplifiers
(low power consumption in comparison with the output power),
using MOS and/or LD-MOS semiconductors, AB class polarized,
properly precorrected in order to obtain the necessary linearity.
In the high power amplifiers, efficiency is further enhanced by the
use of switched-mode power supplies, provided with PFC-Power
Factor (cos. ?) Corrector in order to minimize reactive power
consumption.
With digital signals, the power stages are ""backed-off"" (derated) to
an output power which is typically 3 to 6 dB less their analog combined
TV signal rating.
The solid-state high power output amplifiers normally comprise
more independent power amplifiers chassis, each with its own
power supplies.

For standard specifications and general description,
please refer to ""MTX Compact Series"" brochure
GENERAL SPECIFICATIONS
Output frequency range: UHF 470 to 860MHz in 1Hz steps
Output Power (before output filter): 10.000W rms (tol. +0/-1dB)
Output connector: Flange 3+1/8""
MER: 35dB (typ. min. ? 32dB)
Shoulders attenuation (before output filter): 38dB (typ. min. ? 36dB)
Housing: 2x Rack Cabinet 19"" 38U dimension: 570 x 1900 x 1000 mm (W x H x D) each
Power consumption: <54KVA (typ. 42KVA) - Standard Broadband Configuration
<33,5KVA (typ. 30KVA) - High Efficiency Narrowband Configuration (with reduced
performances)
Power supply: 400 Vac ±10% 50/60Hz three phases
(different power supplies and tolerances available on request)""
