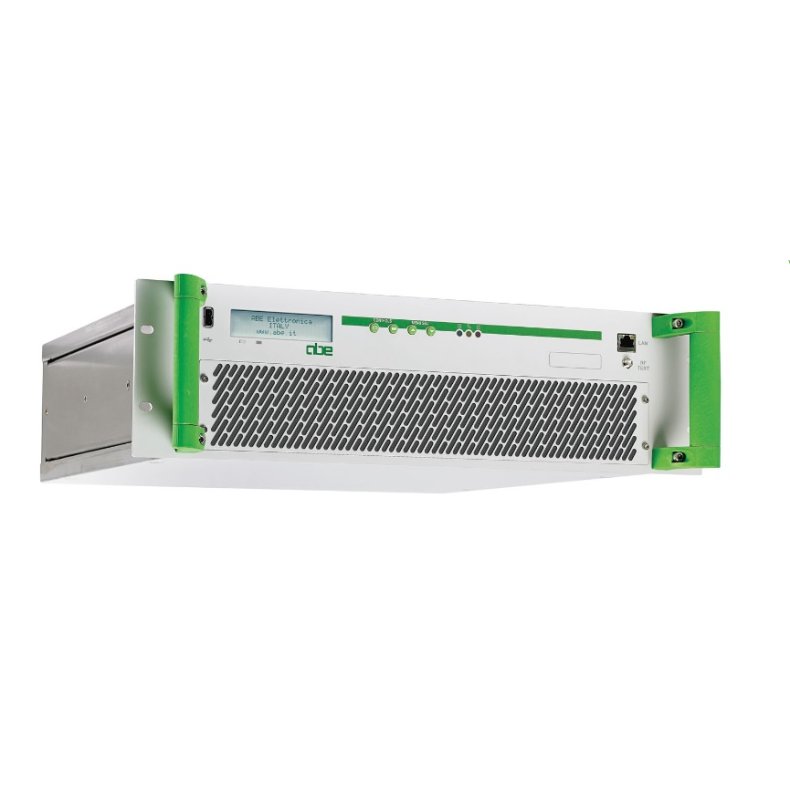

ABE MTX D50/U DVB-T2 UHF TV Transmitter 60W rms

7.990,00 EUR

Modell/Artikelnr.: AB-MTX D50_U

Lagerstatus: Bitte erfragen Sie unsere Lieferzeit

Stück

Beschreibung
Schlagworte

ABE MTX D_T2: TV Transmitter with Direct Digital Synthesis (DDS) Modulator, N°1 double ASI input interface, N°3 Processor Board with DVB-T2 emission standard license (DVB-T/H and ISDB-T/Tb emission standard license as option), Linear & Non-Linear Digital Precorrector, LAN Interface (Web server, e-mail client and SNMP). Output power specified in the description is before output filter.
MTX D_T2: TV Transmitter with Direct Digital Synthesis (DDS) Modulator, N°1 double ASI input interface, N°3 Processor Board with DVB-T2 emission standard license (DVB-T/H and ISDB-T/Tb emission standard license as option), Linear & Non-Linear Digital Precorrector, LAN Interface (Web server, e-mail client and SNMP). Output power specified in the description is before output filter.

Output frequency range: UHF 470 to 860MHz in 1Hz steps
Output Power (without output filter): 60Wrms
Output connector: N" female (7/16 female on request)
MER: 39dB typ. (min. ≥ 35dB)
Shoulders attenuation (without output filter): 42dB typ. (min. ≥ 38dB)
Housing: Rack drawer 19" 3U (depth 475mm - connectors and handles excluded)
Power consumption: Typ.: 350W
Power supply: 185 to 264Vac 47/63Hz single phase
(different power supplies and tolerances available on request)
Redundant power supply hot pluggable from the rear panel (option)

"
