SDI Video Inputs
1

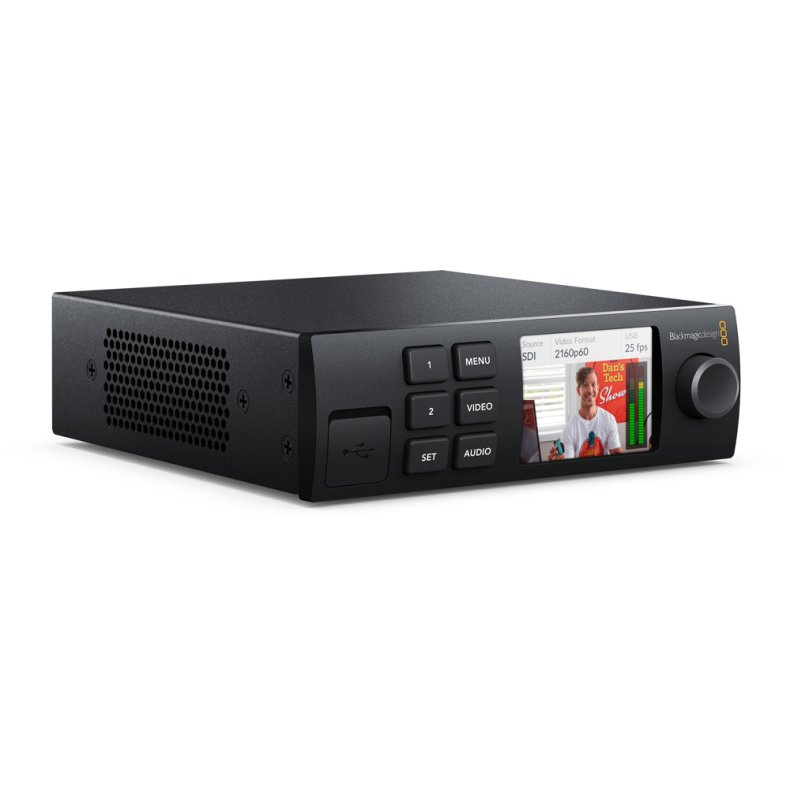

Blackmagic Web Presenter HD
Der Blackmagic Web Presenter ist eine Komplettlösung fürs Streaming. Ausgestattet ist er mit einer professionellen Hardware-Streaming-Engine, um per Ethernet direkt an YouTube, Facebook, Twitter und andere Plattformen zu streamen. Überdies haben Sie die Wahl, per Ethernet ins Internet zu streamen oder über ein angeschlossenes 5G- oder 4G-Handy mobile Daten zu nutzen. Da die eingebauten USB-Anschlüsse wie eine Webcam funktionieren, können Sie einen Computer anschließen und beliebige Videosoftwares verwenden. Ihnen wird sogar ein Monitoring-Ausgang für Videobild, Audiopegelmeter, Trendgraphen und mehr geboten.
Designed for Internet Broadcasting
The easiest way to stream to your favorite websites or services!
Blackmagic Web Presenter is the fastest and easiest way to get live video directly onto the web for a new generation of web broadcasting. Plus you don’t need to buy expensive and hard to setup streaming encoders! Simply connect video sources such as a professional SDI camera or an HDMI source like a consumer camera or computer into Blackmagic Web Presenter then connect it to your computer’s USB port! That’s all you need to do! Blackmagic Web Presenter will work with any software that supports video from a webcam because it tricks your computer into thinking the SDI or HDMI device is a webcam! Now you can use popular software such as Open Broadcaster or XSplit Broadcaster to live stream your broadcasts and events! Best of all, you don’t need any drivers!
Professional Quality Streaming
Now you can turn any liveproduction into a global broadcast!
Blackmagic Web Presenter is perfect for anyone that wants to broadcast professional looking, high quality video on the internet! Traditional broadcasters can use Blackmagic Web Presenter to quickly get content out to a global audience from any location through YouTube Live, Facebook Live and more! It can even be used as a backup video link in the field if a satellite channel goes down. Web broadcasters can upgrade the quality of their online webinars or AV professionals can even use it to stream content to seminar attendees over the internet. When used with the optional Teranex Mini Smart Panel, Blackmagic Web Presenter becomes a professional 2 input live production switcher that lets you create professional presentations with camera and slide show switched right from the front panel!
Optional Live Production Switcher
Professional, broadcast quality2 input switcher with transitions and more!
The optional Teranex Mini Smart Panel turns your Blackmagic Web Presenter into a professional, broadcast quality 2 input live production switcher! The panel adds push button controls, an LCD screen and spin knob. You can have a presenter on an SDI camera and a slide show on an HDMI computer, then switch between them, complete with smooth professional looking dissolves! You can even preview video and monitor audio levels on the built in LCD screen before going live with your web broadcast!
No Drivers Required!
Compatible withMac, Windows, Linuxand Chromebook computers!
Blackmagic Web Presenter is a standard UVC and UAC compatible USB video device so you don’t need any drivers. Just plug it into your Mac, Windows, Linux or even Chromebook computer. The computer will think that it’s just a standard webcam, however your production quality will be far superior because Blackmagic Web Presenter works with your SDI and HDMI devices such as professional cameras, computers, switchers and even game consoles! It’s like getting a broadcast quality webcam and so much more!
Advanced Connections
Connect virtually any SDI or HDMI camera!
Blackmagic Web Presenter includes 12G-SDI and HDMI 2.0 inputs with support for all SD, HD and Ultra HD formats up to 2160p60. An HDMI loop out lets you insert Web Presenter between your computer and a video projector, and an SDI output is included for master recording the output of the switcher. The SDI program output, which is not down converted to 720p, can be used to record a full resolution master. You also get balanced XLR audio inputs for connecting professional microphones, along with RCA HiFi inputs for connecting iPods and other audio sources so you can add music or computer audio to your program!
Design
Keep it on your desk,stow it in a rack or take it on the go!
Blackmagic Web Presenter is based on the modular Teranex Mini design so it looks good on a desktop, but it can also be rack mounted or easily hidden. Its extremely portable 5.5 inch wide by 1.5 inch height makes Blackmagic Web Presenter perfect for mounting alongside other equipment using the optional Teranex Mini Rack Shelf. You can fit 3 of them side by side in a single rack space, or combine Blackmagic Web Presenter with other products such as Teranex Mini converters, HyperDeck Studio Mini recorders and even an ATEM Television Studio HD switcher! Blackmagic Web Presenter also features a built in power supply so you don’t have to carry around extra power bricks and cables!
Re-Synchronization
Mix and matchdifferent video sourceswith glitch free switching!
Blackmagic Web Presenter features automatic frame resynchronization on the HDMI input so you can work with multiple sources and automatically synchronize them to ensure perfect, glitch free switching. This powerful and advanced feature lets you transition between sources cleanly, as long as they are running at the same frame rates and resolution. With Blackmagic Web Presenter, your transitions will always be smooth and your final output will look amazingly professional!
Connections
SDI Video Outputs
1x program out, 1x loop out.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
HDMI Video Inputs
1
HDMI Video Outputs
1x loop out
Analog Video Inputs
None
Analog Video Outputs
None
Analog Audio Inputs
1x XLR.2 x RCA HiFi.
Analog Audio Outputs
None
Timecode Connection
None
Reference Input
None
RCA
2 X HiFi Analog audio input
XLR
1 X input supporting both microphone and line levels
USB Webcam
1
HDMI 2.0
1 X Input, 1 X loop out, (2 channel embedded audio)
USB 2.0
1 X Type B
Mini USB
1 X for software updates
Standards
Streaming Video Standards
720p over USB.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
12G SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
None
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
None
Hardware Frame Buffer
Supports any USB UVC and UAC webcam video drivers.
Computer Capture
USB webcam for Mac, Windows, Linux and any operating system that supports 720p HD webcams.
Control
Basic Settings Control
Mini Switches.
Built in Control Panel
None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Device Control
None
Software
Compatible Services and Software
YouTube Live, Facebook Live, Twitch.tv, Periscope, Skype, Open Broadcaster and XSplit Broadcaster.
Operating Systems
Mac 10.13 High Sierra,
Mac 10.14 Mojave or later.
Windows 8.1 or Windows 10.
Linux
Chrome OS
Power Requirements
Power Supply
1 x Internal 90-240V AC.
Power Consumption
24 watts
Physical Specifications
Environmental Specifications
Operating Temperature:
5° C to 50° C (41° - 122°F)
Storage Temperature:
-20° to 60° C (-4° to 140° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
Web Presenter
SD card with software and manual
Warranty
3 year Limited Manufacturer’s Warranty.
