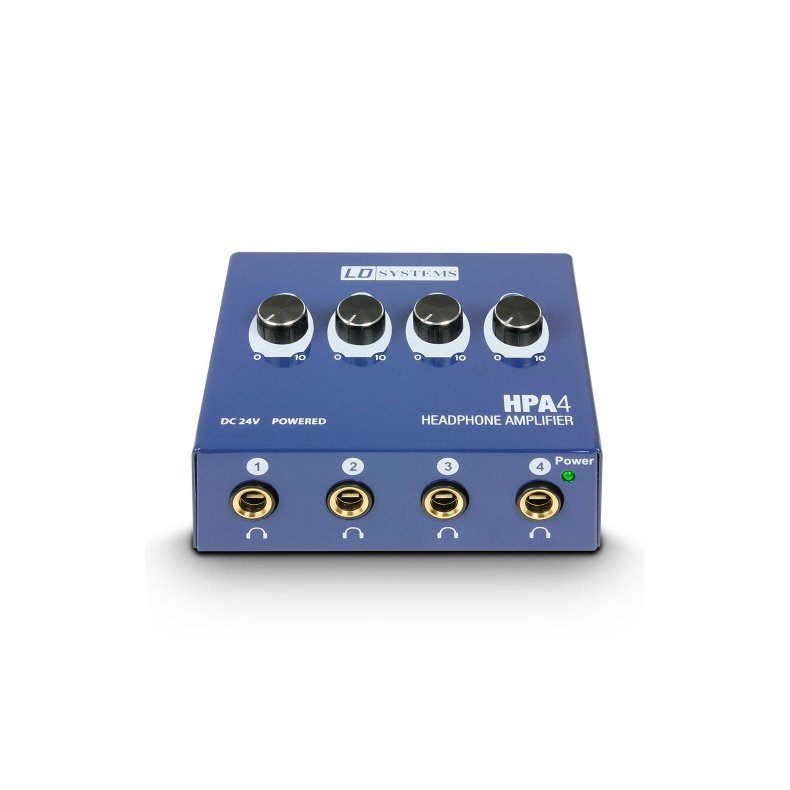

LD Systems HPA 4 Headphone Amplifier 4-channel
LD Sytems HPA 4 - a compact and powerful headphone amplifier
The LD Systems LDHPA4 has small dimensions, can handle up to 4 headphones and has an output power with no equal in its class. That means high volume with no distortion. With these features the LDHPA4 is an essential tool for every project- and home studio.
Specifications:
Headphone Amp:
Inputs: 2
Input connectors: 6.3 mm TRS , RCA
Input impedance: 1 k Ohm(s)
Outputs: 2
Output connectors: 6.3 mm jack
Power output: 4 x 100 mW
Minimum connected impedance: 10 Ohm(s)
Frequency response: 20 - 20.000 Hz
Controls: 4 x headphone volume , Mono/stereo switch
Indicators: Power
Operating voltage: External Power Supply
Operating voltage: 24 V DC
Cabinet material: metal
Cabinet surface: painted
Width: 94 mm
Height: 48 mm
Depth: 82 mm
Weight: 0,27 kg
Accessories (included): power supply
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| LDHPA4_LDSystems_Bedienungsanleitung_EN_DE_FR_ES_PL_IT.pdf | 1.67MB | Herunterladen |
