AJA

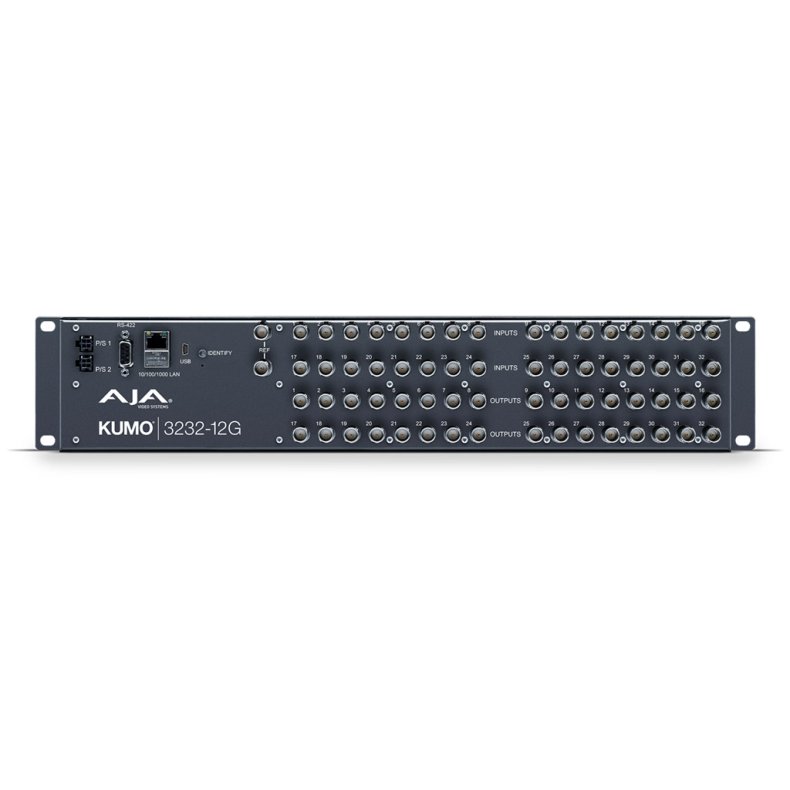

KUMO 3232-12G offers increased capacity for medium sized configurations while maintaining a compact 2RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI from 32x 12G-SDI inputs and 32x 12G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows.
KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable counts when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control using KUMO CP and CP2, and mirror the physical form of AJA’s production-proven KUMO 3232 and KUMO 1616 routers, with a USB port for configuring IP addresses via AJA’s eMini-Setup software.
Built to the same quality standards as all AJA KUMO products, KUMO 3232-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.
Features
- 32x 12G-SDI inputs and outputs
- Small, portable form factor
- Single cable support for 4K/UltraHD
- Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
- Redundant power supply (option)
- Eight salvos per router
- Embedded web server for remote control
- Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
- Five year warranty
Powerful Signal Management
KUMO 3232-12G’s powerful cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 3232-12G can take the place of multiple distribution amplifiers.
As 8K emerges and 4K/UltraHD workflows continue to gain ground, KUMO routers can meet the rising challenge. KUMO 12G-SDI routers offer single-link cable simplicity for 4K/UltraHD and with a simple setting change, KUMO 12G-SDI routers can be configured for ganged dual link or quad link routing allowing users to group together multiple inputs and outputs for 8K workflows and similarly, KUMO 3G-SDI routers for dual or quad link 4K/UltraHD workflows. This allows routing of raw or 8K or 4K/UltraHD signals throughout a production, live event, OB truck or post facility.
Compact Routing
KUMO compact SDI routers provide powerful signal control and support full broadcast specifications over 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, with quality that exceeds SMPTE specifications. The super-compact 1RU and 2RU and 4RU formats are just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.
KUMO SDI routers are available in seven configurations: Three for 12G/6G/3G/1.5G-SDI and four for 3G/1.5G-SDI routing needs.
For 12G-SDI, look to KUMO 3232-12G for 32x 12G-SDI inputs and outputs or KUMO 1616-12G for 16x 12G-SDI inputs and outputs.
For 3G-SDI look to KUMO 6464 for 64x 3G-SDI inputs and outputs, KUMO 3232 for 32x 3G-SDI inputs and outputs, and KUMO 1616 for 16x 3G-SDI inputs and outputs.
Salvo Simplicity
Salvos allow an operator to quickly route a predefined set of crosspoints, connecting specific sources to destinations, at the push of a button. Salvos are easily created by simply setting up the desired routes and saving it to a button in the KUMO router’s Web UI.
Up to eight salvos can be stored in a KUMO router and can be instantly recalled via the KUMO router’s Web UI, GVG Native Protocol over Ethernet, RS-422, and/or the AJA KUMO CP2 Salvo buttons.
