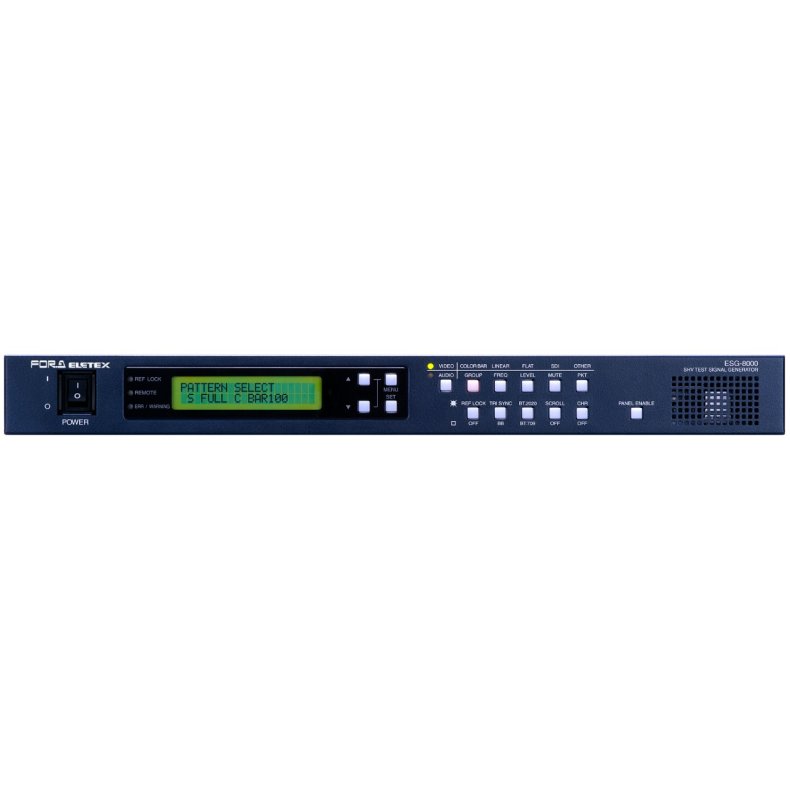

For-A ESG-8000
From HD to 8K, covers all video/audio testing needs
Full range of test patterns, extensive outputs
Test signal generator compatible with YCbCr 4:2:2 10-bit FS-SHV (Super Hi-Vision Full Resolution) signals. Also produces DG-SHV (Super Hi-Vision Dual Green) signals.
Video test patterns
Standard test patterns include color bars, ramp, steps, white, black, pathological, crosshatch, multiburst, and noise. Up to 10 custom test patterns created on a computer can be registered.
Colorimetry switching
Choose from ITU-R BT.2020 or ITU-R BT.709 for 8K testing (except for custom test patterns).
Test pattern scrolling
Scroll test patterns horizontally, vertically, or diagonally.
Character display
Display time codes or payload IDs on test patterns if needed.
Output frame frequency switching
Choose from 59.94 Hz or 50 Hz.
Audio test signals
Choose from standard test signals, such as a 1 kHz signal, or custom WAV (linear PCM) files created on a computer.
Full-featured output
For 8K video output in DG mode, choose from one line (1.5G-SDI: 16 channels) or two (3G-SDI: 8 channels). In FS mode, one line (3G-SDI: 16 channels) is provided. Choose from one or two lines for 4K or HD video output. Audio is embedded in HD, 4K, or 8K output. Also supports MADI signals.
Payload information multiplexing
Payload information can be multiplexed into output signals.
Reference signal outputs
Three lines are provided, for which either black burst (BB) or tri-level sync mode can be independently selected.
External control, SNMP monitoring
Control the unit via telnet, or monitor operation via SNMP.
